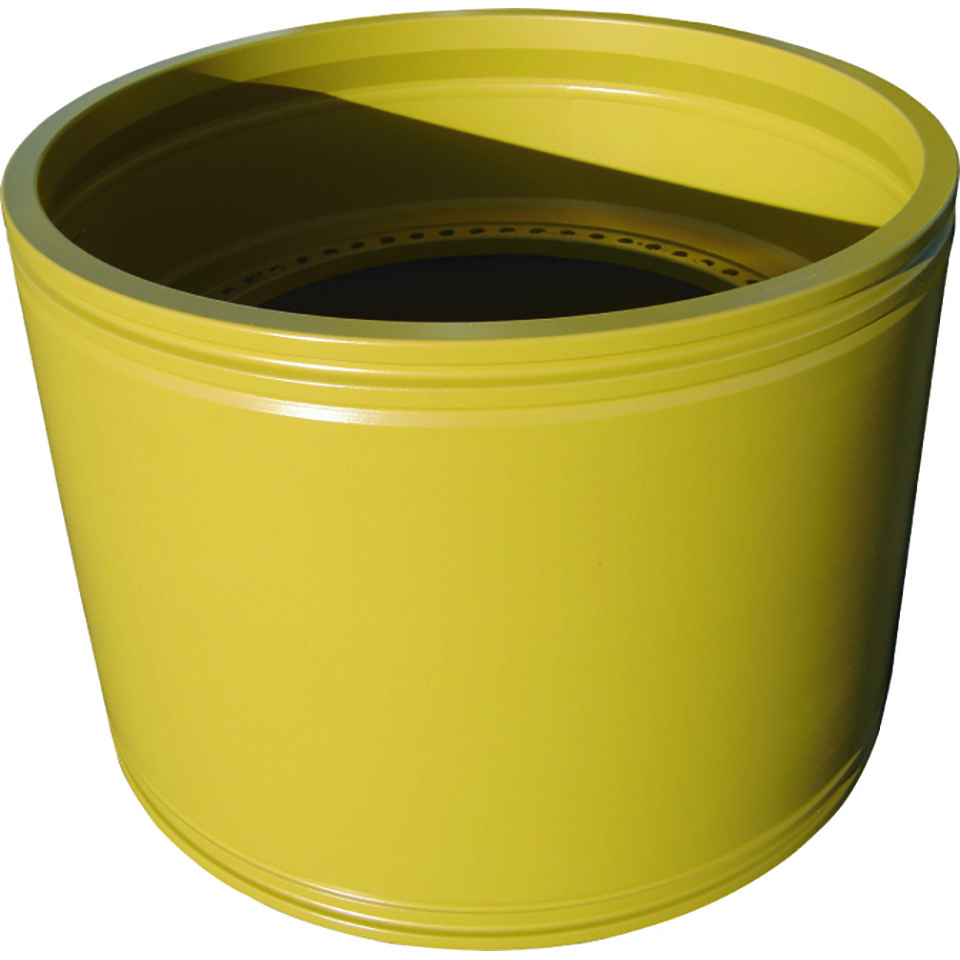

• The revolutionary Double Gutter Service (DGS) Series is a RIMEX TSR wheel/rim assembly with two bead bands, two side rings, one two-piece lock ring and one standard lock ring. The DGS was developed as a position-sensitive outer dual so the inside tire could be easily mounted/demounted without removing the outer wheel/rim base. It is designed with safety and time savings in mind — tire changes are completed in a fraction of the time.

  RIMEX DGS wheels can be installed to haul truck outer dual positions without upgrading the inner dual wheels. Now the inner dual tires can be changed without removing the outer dual.

  Increase Equipment Availability by 12.5 Days Each Year with DGS/IGLR Wheels

  The following chart demonstrates the time savings achieved with the installation of the DGS/IGLR combination over industry standard 5 piece rims*.

  Inside tire removal and replacement



  Outside tire removal and replacement



  The eight piece DGS/IGLR Series combination saved 300 hours or 12.5 days of equipment availability per year! (Based on a fleet of twenty 240t haul trucks with an average of 153 inside tire changes and 39 outside tire changes per year)

  *Times may vary based on skill and conditions.

• The revolutionary Double Gutter Service (DGS) Series is a RIMEX TSR wheel/rim assembly with two bead bands, two side rings, one two-piece lock ring and one standard lock ring. The DGS was developed as a position-sensitive outer dual so the inside tire could be easily mounted/demounted without removing the outer wheel/rim base. It is designed with safety and time savings in mind — tire changes are completed in a fraction of the time.

  • Available in wheel sizes from 29″ – 63″
  • Available in standard 5-piece assembly and as Double Gutter Service (DGS) / Integral Gutter Lock Ring (IGLR) assemblies
  • Each DGS wheel is custom manufactured for precise fitment to the specified machine

• Make existing products more efficient with DGS and Standard wheels

  Install RIMEX DGS wheels to haul truck outer dual positions without upgrading the inner dual wheels.

  Simply install a two-piece lock ring on the standard inner dual wheels. Now the inner dual tires can be changed without removing the outer dual wheels.

  The standard wheels that were removed from the outer dual positions can be used as spare stock to support the front and inner dual positions.

  DGS wheels can be utilised on a wide variety of haul trucks.



  Maximise efficiency and ROI with DGS and IGLR wheels

  Utilising RIMEX DGS and IGLR wheels on all six positions of a haul truck will not only save you time and money, but will greatly reduce the risk of injury to tire technicians:

  • The use of an impact wrench is eliminated.
  • Two-piece lock ring sections are lighter, easier to handle, install and secure in place than a one-piece lock rings.

  NOTE: Two-piece lock rings are required on ALL rear positions.



  Removing stubborn loader wheels with IGLR wheels

  By using RIMEX IGLR wheels on all four positions of a loader, tire changes become quick and easy. Wheel components can be premounted, ready for installation, dramatically reducing loader downtime. Stubborn tire beads are dealt with when time permits.



  RIMEX DGS and IGLR wheels are manufactured to suit a wide range of tire sizes and equipment models.

•








•
