    RIMEX offers a line of wheel and rim mounting hardware that meets original equipment manufacturer (OEM) specifications including material composition, tensile strength, yield point, core hardness, and grade. All products are manufactured and tested in accordance with internationally accepted technical standards for chemical and mechanical requirements including ISO, ASTM, ASME and SAE.

    For years of trouble-free service, rely on RIMEX studs, nuts and washers when installing wheels and rims on your machines.

    Find the hardware you need by clicking the Specifications tab to preview a list of list of the most common OEM equipment on which RIMEX wheels and rims are found. If your machine isn’t listed, contact us as we will likely have the hardware you need.

    Click on the Gallery tab for images of common RIMEX studs, nuts and washers. Click on the Brochure tab for a printable version of the table found under Specifications.

    Article: Studs and Nuts Maintenance

  • Specifications

    RIMEX Studs and Nuts

    Scroll horizontally and vertically to see the full table. Click on the Brochure tab for a printable version. Click on the Gallery tab for larger images.

    RIMEX Item NumberManufacturerModelTypeStud Nut ThreadPositionOEM NumberOEM Mark
    730-000-0024Caterpillar777WasherRear Inner
    Rear Outer
    Steer
    5D-0764No mark
    730-000-0122Caterpillar793Stud bolt1.3125 -12 UN2G4996No mark
    730-000-0185Caterpillar777Stud Bolt1.3125 -12 UNRear Inner
    Rear Outer
    Steer
    4D8695
    730-000-0016Caterpillar793Flange StudM24 x 38X0274CAT 11.9
    730-000-0049Caterpillar793Washer6V8237No mark
    730-000-0050Caterpillar793NutM24 x 37X-0851Class 10
    730-000-0121Caterpillar793Hex BoltM24 x 38T0669Class 10.9
    730-000-0170Caterpillar793Flange StudM24 x 3Rear Outer1906103CAT 11.9
    730-000-0108Caterpillar797Flange StudM36 x 4Adapter Outer191-5198No grade mark
    730-000-0109Caterpillar797Flange StudM36 x 4Adapter Outer191-5199No mark
    730-000-0110Caterpillar794, 795
    797
    Flange StudM36 x 4Rear Inner
    Steer
    146-7813CAT 11.9
    730-000-0157Caterpillar797Flange StudM36 x 4Adapter OuterN/A
    730-000-0158Caterpillar797Flange StudM36 x 4Adapter OuterN/A
    730-000-0006Caterpillar16H, 768
    769, 770
    771, 772
    773, 775
    776, 777
    Hex Nut1.3125 -12 UNRear Inner
    Rear Outer
    Steer
    5D0765No grade mark
    730-000-0206Caterpillar773, 775
    777
    Hex NutM33 x 3.5339-3284Class10
    730-000-0207Caterpillar773, 775
    777
    Washer322-1942No mark
    730-000-0208Caterpillar773, 775
    777
    Flange StudM33 x 3.5321-5144CAT 11.9
    730-000-0009Caterpillar785, 789Hex Nut1.0 – 8 UNC2J3507No grade mark
    730-000-0010Caterpillar785, 789Washer5P8250No mark
    730-000-0167Caterpillar785, 789Flange Stud1.0 – 8 UNCAdapter Outer
    Rear Inner
    8X2561CAT 7-dash
    730-000-0168Caterpillar785, 789Flange Stud1.0 – 8 UNCSteer8X2560CAT 7-dash
    730-000-0107Caterpillar794, 795
    797
    Hex NutM36 x 4Adapter Outer
    Rear Inner
    Rear Outer
    Steer
    8C4032Class 12
    730-000-0209Caterpillar794, 795
    797
    WasherAdapter Outer
    Rear Inner
    Rear Outer
    Steer
    146-1799No mark
    730-000-0060CaterpillarMT4400Double End
    Stud
    1-14 UNS82253A
    730-000-0165HitachiEH4500
    EH5000
    All Thread
    Stud
    1.25 – 12 UNFRear Outer12660633
    730-000-0204Komatsu730E
    830E-5
    Flange Nut1.0 – 8 UNCAdapter Outer
    Rear Inner
    Steer
    WB3205
    730-000-0205Komatsu730E
    830E-5
    Flange Stud1.0 – 8 UNCRear Inner
    Steer
    XB4708KOM 170
    730-000-0067Komatsu730E
    830E-5
    930, 960E
    Double End
    Stud
    1.25 – 7 UNCRear OuterEM5451Grade 9
    730-000-0079Komatsu730E
    830E-5
    930E, 960E
    Flange
    Nut
    1.25 – 7 UNCRear OuterWB1134CL 10

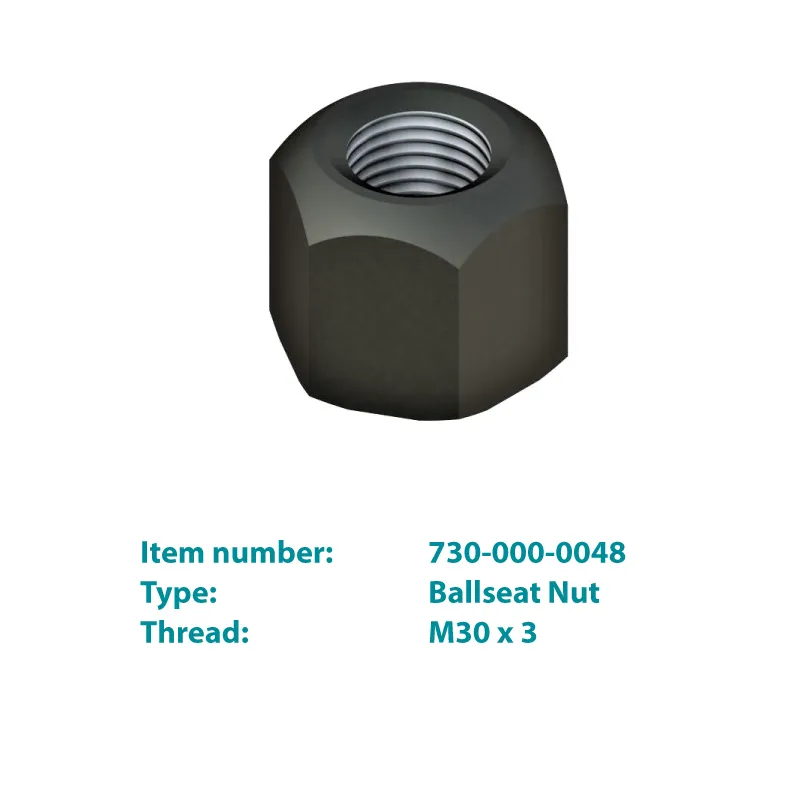

    730-000-0048Komatsu785-5
    HD1500
    Ballseat
    Nut
    M30 x 3Rear Inner
    Rear Outer
    Steer
    582-27-11291No mark
    730-000-0175Komatsu785-7WasherRear Inner
    Rear Outer
    Steer
    569-22-72840No mark
    730-000-0176Komatsu785-7Stud BoltM33 x 3Rear Outer569-22-72850
    730-000-0177Komatsu785-7Stud BoltM33 x 3Rear Inner
    Steer
    569-22-72860
    730-000-0178Komatsu785-7Hex NutM33 x 3Rear Inner
    Rear Outer
    Steer
    569-22-72870
    730-000-0029Komatsu830EDouble End Stud1-14 UNSRear OuterEM5453Grade 8
    730-000-0030

    Komatsu830EFlange Nut1-14 UNSRear Inner
    Rear Outer
    Steer
    TA-2572Grade 8
    730-000-0041Komatsu830EDouble End
    Stud
    1-14 UNSSteerEM5452Grade 8
    730-000-0161Komatsu930EExt Flange
    Nut
    1.25 – 7 UNCRear OuterN/A
    730-000-0174Komatsu930EFlange
    Stud
    1.25 – 7 UNCSteerEH-0826KOM 170
    730-000-0181Komatsu930EDouble End
    Stud
    1.25 – 7 UNCRear OuterN/A
    730-000-0202LiebherrT282Flange Stud1.25 – 7 UNC10166401
    730-000-0156LiebherrT282
    T284
    Ext Flange Nut1.25 – 7 UNCRear OuterN/A
    730-000-0088P&H12PT Cap Screw1.0 – 8 UNCRear Outer
    Steer
    R4152660No grade mark
    730-000-0090P&HWasherRear Outer
    Steer
    R6957197No mark
